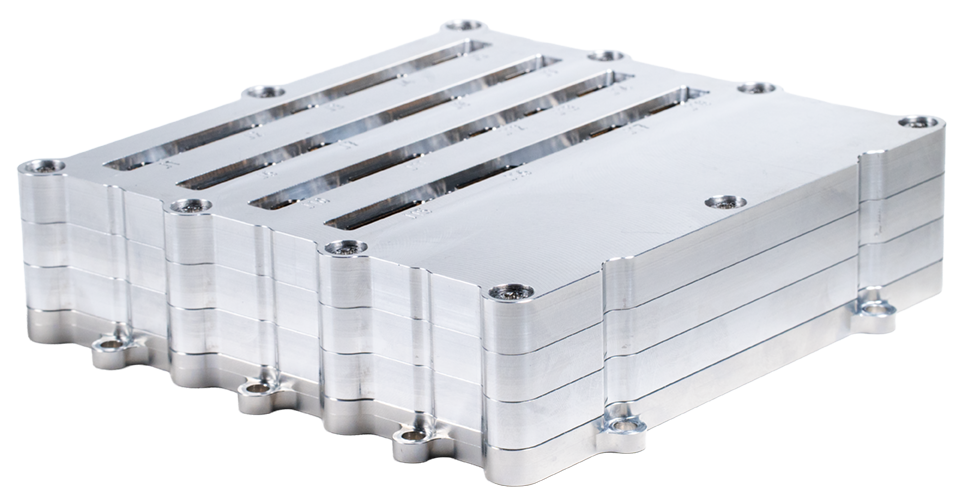

iX20

HIGH-THROUGHPUT INTELLIGENCE


Transforms up to 100 Gbps of raw sensor data into actionable information through a real-time processing pipeline that combines hardware acceleration, image formation, and onboard AI.

STANDARDIZED ADAPTABILITY


A standardized Expansion Module architecture enables rapid adaptation to new spacecraft, payloads, and mission requirements without redesigning the core platform.

SECURE BY DESIGN


Powered by Unibap SEQR, the iX20 protects mission systems and data through encryption, signing, tamper detection, and secure recovery, mechanisms aligned with the “CIA” security model.

Want to know more?

Processing & Storage


CPU: AMD Ryzen V8000
GPU: AMD Radeon, 12-core, 2.7 GHz
VPU: 4 x Hailo-8
RAM: 64 GB DDR5 ECC (CPU/GPU)
Storage: 4 x 4TB NVMe SSD

Mechanical


Dimensions: 177×177×45 [mm]
Mass: 1820 g +/- 15%
Enclosure: Aluminium ~5 mm
Power: 9-32 V
Power consumption 7 W idle, 40-50 W typical

Input / Output


LVDS: Up to 48 x
Camera link: Up to 4 x Camera Link Base
GPIO: 24 x
USB: 2 x USB 2.0
CAN: 2 x 2.0A
Ethernet: 2 x 10 GbE
I2C: 2 x
PPS: Proprietary PLET
Serial communication: Up to 7 x RS422
SpaceWire: Up to 8 x
ADC inputs: 15 x for, e.g., thermistors
Expansion modules: Additional USB (2 x USB 3.2), PCIe x4 (gen4), and High-speed transceivers (8 x 25 Gb GTY, 6 x 10 Gb GTY) available

Environmental


Qualification: Vibration, Shock, Thermal vacuum, EMC, Outgassing, Radiation (TID, proton)
Operating temperature: -20 °C to 55 °C
Target orbit: LEO, MEO, GEO, Interplanetary
